Thursday, August 27, 2009

JBU RF Plate SN3 Delivered

JBU RF Plate SN3
JBU RF Plate SN3 was delivered to our customer (ahead of schedule!). The RF Module was designed to provide wideband gain, equalization, and Built-in-test (BIT) injection between two very long RF cable runs (between an Antenna Assembly and below decks receivers). The gain and equalization was needed to preserve the RF path noise figure and dynamic range performance through the long cable run.
All RF test data (gain, slope, flatness, return loss, input 1 dB compression point, and noise figure) was collected using our in house test equipment and our in house automated RF test software (Painless Extraction, Painless Extraction Noise Figure, and RFSpecTest). Mechanical parts were fabricated externally from our SolidWorks created mechanical drawings, and chem-film treated with Iridite (MIL-C-5541E Class 3) to prevent corrosion.
Posted by Bob Wood at 9:40 PM
Edited on: Monday, August 21, 2023 5:59 PM
Categories: 60 Hardware Products-Archive, 95 Other-Archive

Friday, August 21, 2009

RF Receiver Simuator SN4 Delivered

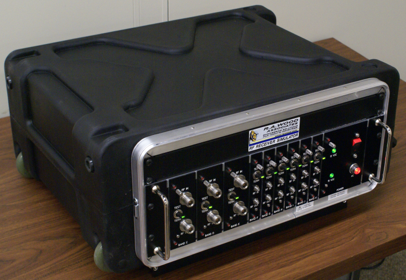

RF Receiver Simualtor SN4 We've delivered our fourth RF Receiver Simulator, and our 6th of a family of Receiver Simulator products. The simulators are designed to represent the RF front end (noise figure, gain compression point, and intercept point) of a complex EW system, to allow testing, verification and validation of the EW system back end, without requiring the expensive front end components.

If you have a need for one of these types of products, please contact us.
Posted by Bob Wood at 8:46 PM
Edited on: Monday, October 07, 2013 7:27 PM
Categories: 10 QuickNews, 20 Hardware Products-Current
