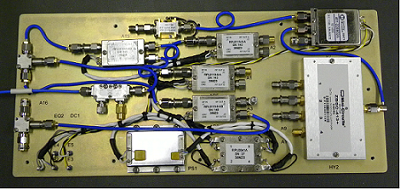

• Wide Freq bandwidths ~DC-3GHz

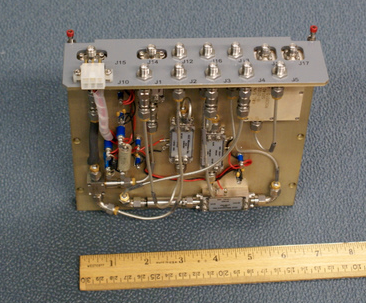

• Uses New R.A.Wood Associates designed amplifiers with new 50% smaller M06 amplifier packages
• Used as part of a Subsystem, deployed on Navy vessels
• 14 built and delivered on time
• Provides 9 output ports for downstream equipment

We haven't posted in a while. It's because we've been crazy busy. Our newest product, the RCT0017 WB Tuner and Quad Converter, has been under development over the past 2 years, and is now available. We've designed this from the ground up to meet state of the art high input compression point, low phase noise, fast tuning speed, wide dynamic range, and wide instantaneous bandwidth requirements. A quick overview of the specifications:

• Frequency Coverage: 2-18 GHz
• First IF’s: 2.2-3.8 GHz, 3.8-5.3 GHz, available simultaneously
• Second IF’s: 4 outputs at 750 MHz, 375 MHz wide, providing 1.5 GHz instantaneous bandwidth across the First IF’s
• Input 1 dB Compression Point: >+6 dBm
• Noise Figure: 21 dB
• Input Dynamic Range: -60 to +2 dBm
• Gain: 10 dB average
• Tuning Speed: <1 uSec
• Frequency Step Size: 375 MHz
• Phase Noise: -150 dBc/Hz @ 10-20 MHz Offset
• Form Factor: VME 6U 2 Slot Design
• Control and Status: VME A24 D32
• Designed to follow an Low Noise Front End with Approximately 30 dB ENR
• Designed to drive 1 GHz Digitizers linearly up to +12 dBm

A brief data sheet can be downloaded from this link

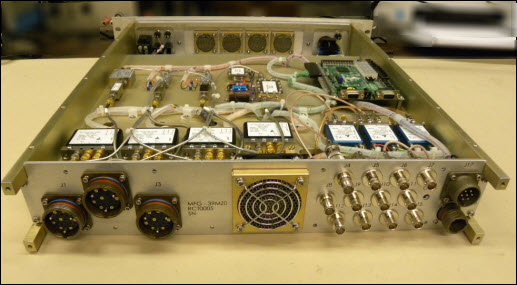

We've delivered the third Electronics Support Switching Uint (ESSU) for one of our customers (ahead of schedule!). This was another set of hardware slated to to be installed on a Navy Vessel. The ESSU is shown here with the cover removed, looking from the back. All RF components are mounted on both sides of a center RF plate. Shown are RF amplfiers, equalizers, attenuators, RF switches, cabling, FPGA card, and rear connectors (21 RF connectors, 12 video/75 ohm connectors, Audio, Power).

For additional information, please visit our ESSU information page.

On September 15 2006, R. A. Wood Associates delivered the first two of 15 complete Integrated RF Test Racks. The Integrated RF Test Rack provided a complete solution for complete automated testing of 7 RF/Digital modules. All equipment was controlled through GPIB interfaces. All automated test software was written in National Instruments LabVIEW by R. A. Wood Associates. RFSpecTest was used in "script" mode to perform most of the RF measurements. The rack consisted of:

• 2 Signal Generators (one for RF signals, one for LO signals)
• 1 Spectrum Analyzer (for measuring RF signal amplitudes and frequencies)
• 1 Multimeter (for monitoring resistances and voltages at various points on the modules)
• 3 Power Supplies (for providing DC power to the modules under test)
• A rack mount PC with GPIB and Digital I/O cards, loaded with software for controlling test equipment and reporting test results
• A rack mount interruptible power supply (UPS)
• R. A. Wood Associates Automated RF Test Fixture
• Laser Bar Code Reader (for reading and automatic entry of module serial numbers)
• A 19" Flat Panel Display (mounted on movable monitor arm)
• Keyboard and Mouse in a slide-out ergonomic tray

The full rack was designed to be a comfortable testing environment, as well as easy to maintain. Equipment is easy to remove if needed with minimal interference to other equipment.

More information about the Integrated RF Test Rack is available from this link.
